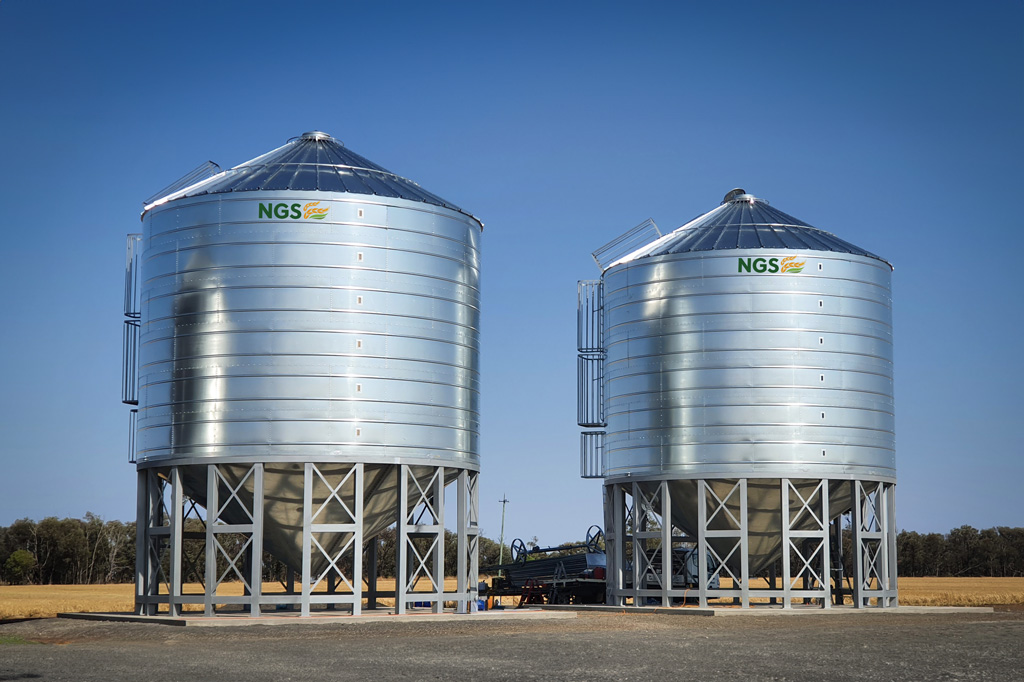

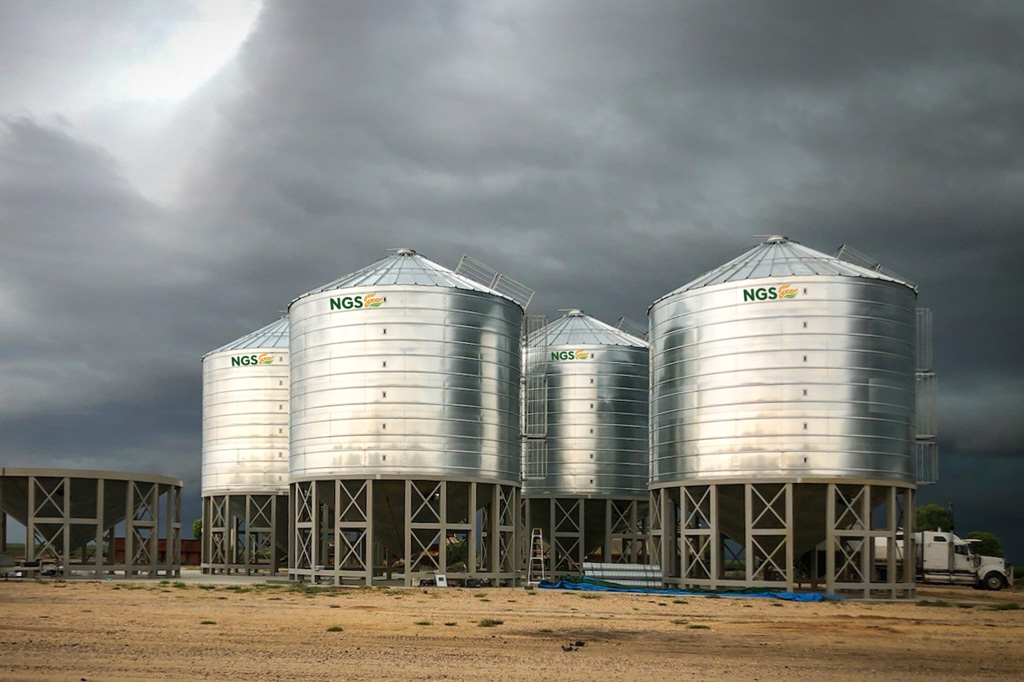

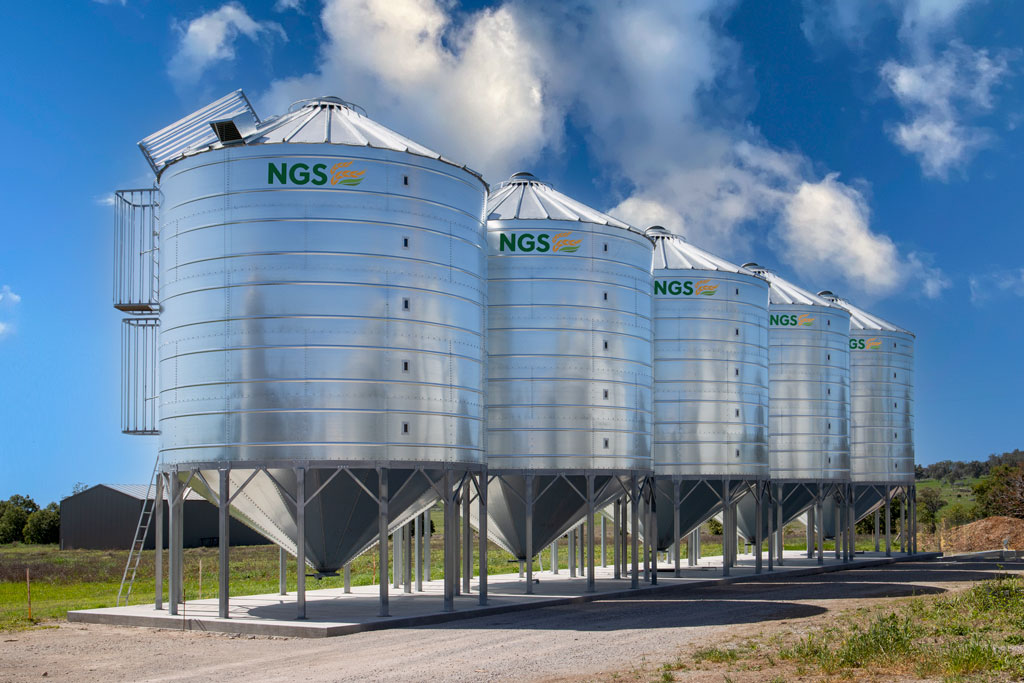

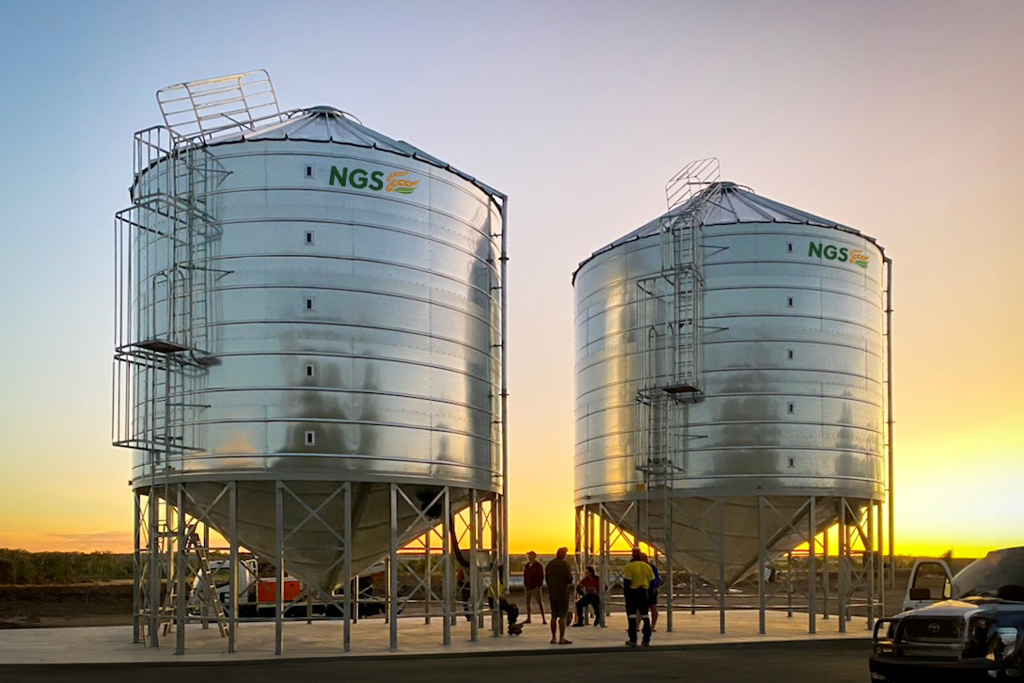

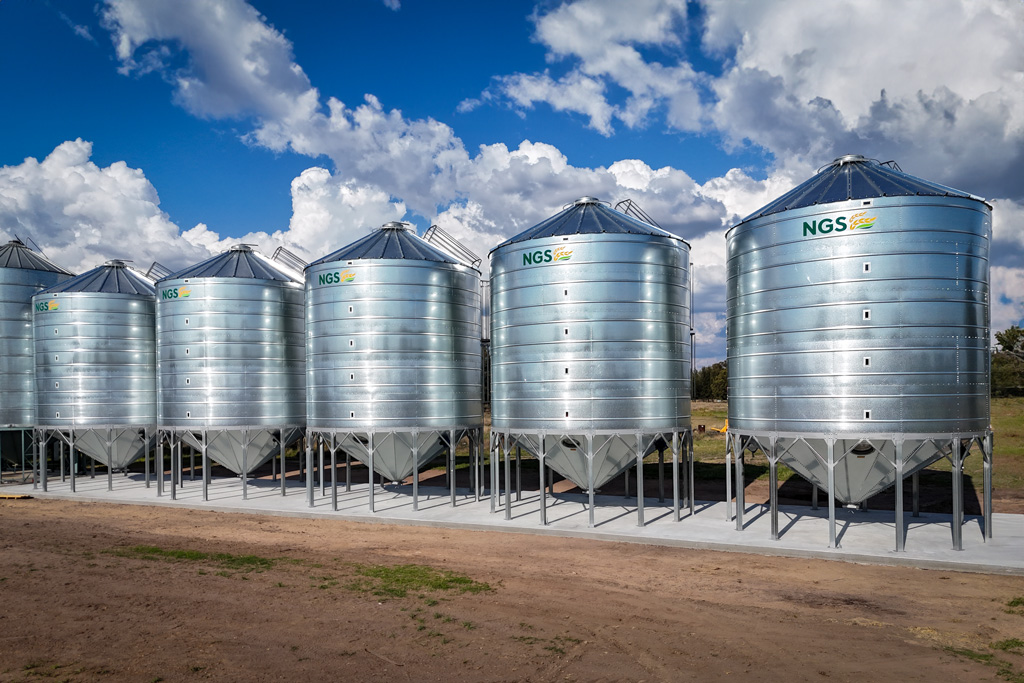

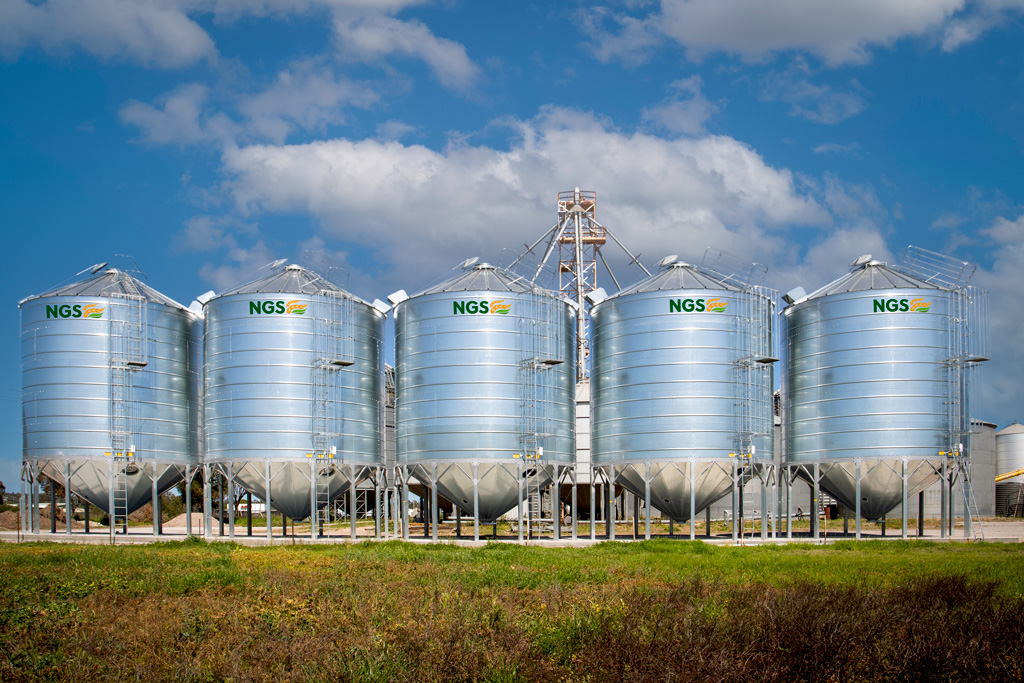

National Grain Solutions manufacture cone elevated silos for clients who require large-capacity storage. Our large capacity silos are constructed onsite by our own experienced team. National Grain Solutions prides itself on the quality of our products and being Australian-made and owned.

Please call our friendly staff or use our website enquiry form for a quote.

Features

• Ranging from 140 – 500 Tonne capacity
• Silos sealed gas-tight complying with Australian standard AS2628
• Base, walls and roof all made from premium galvanised steel
• All models can be custom-designed to suit your specific needs
• Covered by NGS Gunnedah 5-year warranty

Safety features and inclusions

• Sight glasses x 2 in top and bottom barrels to indicate the level of grain in silo
• Safety ladders and cages that comply with Australian Standard AS1657
• Slide ladder that locks into place above ground to prevent accessibility to children and visitors
• Pressure relief valve
• Ground opening lid
• Manhole in base
• Optional aeration and fumigation systems (please refer to our Aeration & Fumigation page)
• Pre Fabricated in our Gunnedah Factory, Installed onsite by our own experienced team
• Designed and certified in accordance with Australian Standards and Codes

Silo exclusions

• Crane hire to load silo roof and barrel on silo base
• Silo concrete foundation *We strongly advise all customers to consult a structural engineer concerning their foundations. Since foundations are not covered by warranty, getting this aspect correct is crucial. Typically, sites will require excavation, followed by the application of road base and crusher dust to minimise movement after construction. If we determine that the foundations are inadequate, we will not move forward with the job.

Sealed, gas-tight silos

Sealed silos, otherwise known as gas-tight silos, are recommended for long-term storage of grain.

Sealed silos are a controlled atmosphere that acts as fumigation chambers for effective control of insects at all life stages. A silo is only truly sealed if it passes a five-minute half-life pressure test according to the Australian Standard AS2628. A silo that does not meet the standard will allow gas to leak out. The concentration of fumigant will be reduced, and there is a chance of insect survival.

National Grain Solutions ensures it has met and exceeded Australian Standard AS 2628 of sealed silos. This is done throughout the manufacturing process by:

• Ensuring all seams and joins are sealed both inside and out
• Rubber Seals made of high density on all openings
• Pressure relief oil valve
• Ability to pressure test your silo on site
• Silos are pressure tested before leaving our factory
